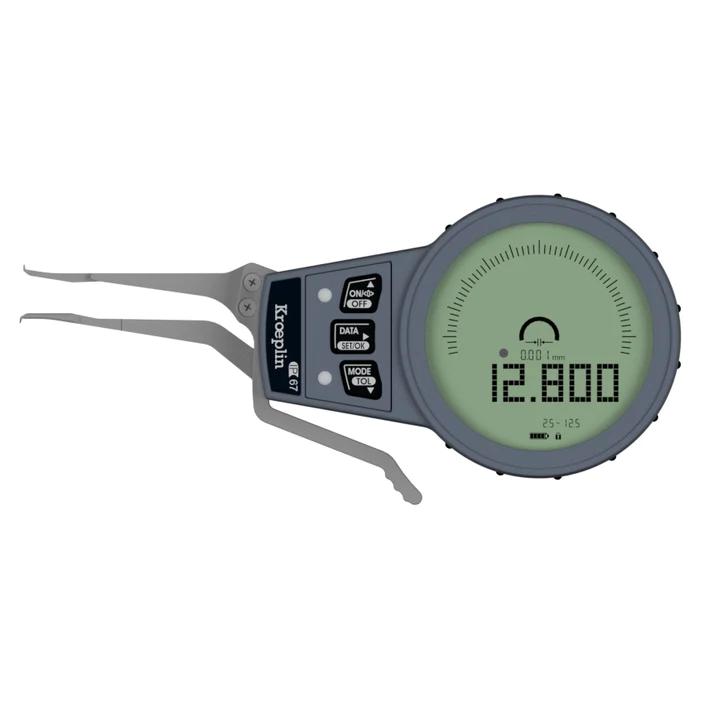

Product Overview

● Type: L

● Display unit (mm / inch): mm + inch

● Application: Internal measurement

● Measuring span Mes: 1.97 inch

● Measuring range Meb: 0.59-2.56 inch

● Range of indication Azb: 0.571-2.579 inch

● Numerical interval Zw: 0.00005 / 0.0001 / 0.0002 / 0.0005 / 0.001 / 0.002 inch

● Maximun permissible errors G: 0.002 inch

● Repeatability limit r: 0.001 inch

● Measuring force F minimum: 1.0 N

● Measuring force F maximum: 1.8 N

● Type of measuring contact movable: HM-Ball Ø 0.06 inch

● Measuring contact movable Hb: 0.24 inch

● Type of measuring contact fixed: HM-Ball Ø 0.06 inch

● Measuring contact fixed Hf: 0.24 inch

● Measuring contact thickness maximum: 0.07 inch

● Measuring depth maximum L: 7.4 inch

● Weight: 415 g

● Reference temperature: 20 °C

● Operating temperature: 10 to 30 °C

● Storage temperature: -10 to 50 °C

● Protection class: IP67

OPTIONAL ACCESSORIES

● Interface bluetooth: Order no. 1961-13

● Wooden box: Order no. 1732-71

● Holding unit: Order no. 8007-10
